Original product description
The HTF-308/KS is a horizontal injection molding machine configured for thermoplastic processing. Its listed equipment architecture combines screw-type plasticizing, hydraulic clamping, automatic operation, and computerized control.
The injection unit is specified with a 55 mm screw diameter, 641 cm³ theoretical shot size, 583 g PS injection weight, 731 g/s injection rate, 164 MPa injection pressure, and screw speed up to 450 rpm. The detailed specification table gives an injection speed of 338 mm/s.
The clamping unit provides a listed clamping force of 3,080 kN and a 610 mm toggle stroke. Space between the tie bars is 615 × 580 mm. The stated mold-height range is 250-650 mm. Ejection specifications are a 150 mm stroke and 80 kN force.
Supporting equipment requirements include a 62 kW pump motor and 29.8 kW of heater power. Listed machine dimensions are 6.8 × 1.9 × 2.4 m, with a machine weight of 12.5 t. Stretch-film machine packaging is identified in the source information.
Customization is listed as available, and the stated warranty and after-sales service periods are each one year. Buyer confirmation is important before procurement.
Ask for a configuration sheet tied to the exact HTF-308/KS quotation, because one summary field shows an injection-speed range of 0-450 while the detailed table states 338 mm/s.
Confirm the processed resin and part requirements, mold dimensions and weight, shot calculation for the intended material, platen and mounting details, electrical supply, controller configuration, cooling and auxiliary-equipment requirements, and applicable safety features.
Buyers should also verify the exact certification documents supplied with the ordered machine. Shipping data should be reconfirmed in writing.
The listed package dimensions use centimeters but numerically resemble the machine dimensions given in meters, so packed dimensions, gross weight, loading method, and freight basis require clarification.
Also confirm commissioning scope, installation responsibilities, training, spare-parts provision, service response arrangements, delivery schedule, and the precise conditions and exclusions of the one-year warranty.
HTF-308 | Applications and Buyer Notes
HTF-308 is organized as a sourcing-ready Injection Molding Equipment reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-ti
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- Injection Molding EquipmentBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Model
- HTF-308/KSBased on visible page data; confirm exact value in the RFQ.
- Screw speed
- 450 rpmBased on visible page data; confirm exact value in the RFQ.
- Machine type
- Horizontal thermoplastic injection molding machineBased on visible page data; confirm exact value in the RFQ.
- Ejector force
- 80 kN build requirement.Based on visible page data; confirm exact value in the RFQ.
- Toggle stroke
- 610 mmBased on visible page data; confirm exact value in the RFQ.
- Clamping force
- 3,080 kNBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Extrusion Lines categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Auxiliaries And Recycling categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Blow Molding And Thermoforming categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Injection Molding Equipment categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Procurement sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Extrusion Line Exporters sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 1250 Ton Aluminum Alloy Injection Die Casting Machine Die Casting Machine And High Pressure Die CaThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Plastic Machinery Suppliers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Injection Molding Machine Manufacturers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 130 Ton Zinc Alloy Injection Die Casting Machine Die Casting And CastingThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 20t 25t 40t 60t Small Injection Molding Machine Plastic Injection Molding Machines Small InjectionThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 20ton Plastic Injection Molding Machine Injection Molding Machine And 20ton Injection Molding MachThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 240 Ton Horizontal Servo Injection Molding Machine For Plastic PreformsThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Automatic Horizontal Thermoplastic Injection Molding Machine with Servo Motor SystemRequest Quote

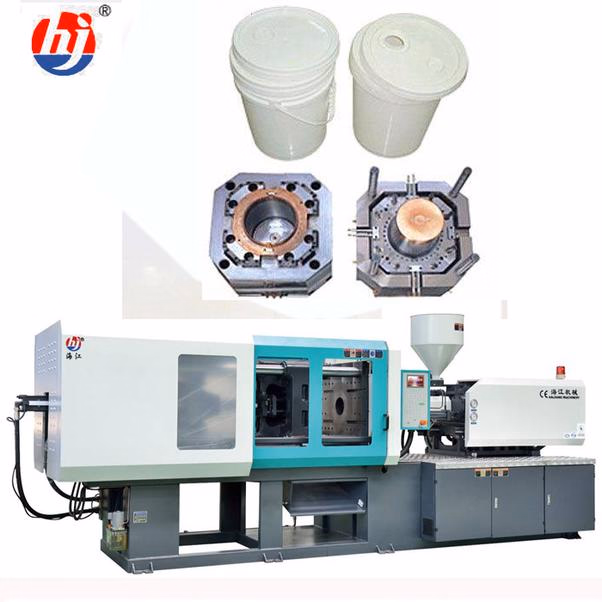

HJF400 Automatic Horizontal Thermoplastic Injection Molding Machine for Paint Bucket ProductionRequest Quote

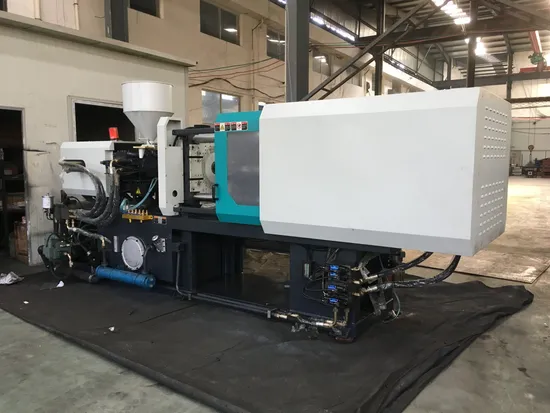

HJF200T Automatic Horizontal Thermoplastic Injection Molding MachineRequest Quote
